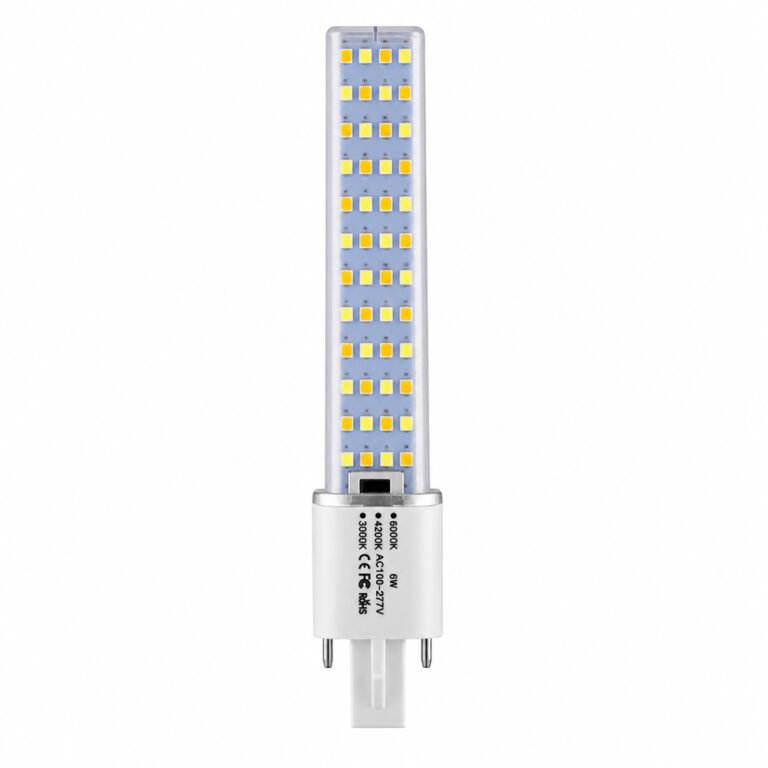

Engineered commercial pin-base LED replacement lamps designed for energy-efficient retrofitting across fixtures. Direct ballast compatible (Type A), ballast bypass (Type B), and universal line voltage configurations.
Industrial-grade retrofit replacements with exact pin keying, verified electrical safety, and low return rate.
CFL retrofit installations fail primarily due to incorrect pin spacing, keying notch mismatch, or improper ballast wiring. Our lamps are built with strict dimensional tolerance to standard ANSI/IEC socket geometries.
| Parameter | Specification Range | Test Method / Note |
|---|---|---|
| Efficacy / Flux | 110 - 140 lm/W | Integrating sphere verified |
| Color Temperature | 2700K / 3000K / 4000K / 5000K | SDCM < 5 chromaticity tolerance |
| Color Rendering Index | CRI ≥ 80 (CRI 90 optional) | High visual clarity for commercial spaces |
| Power Factor / THD | PF ≥ 0.90 / THD ≤ 20% | Commercial electrical grid compliance |
| Operating Temp / Lifespan | -20°C to +45°C / L70 ≥ 50,000 hrs | Thermally isolated internal driver |
| Warranty Standard | 2-Year Limited B2B Warranty | Batch traceability & defect replacement |
We support LED distributors and electrical wholesalers with rapid 1-5 pc paid sample evaluation, tiered pricing, and low-risk continuous supply. Quotations provided within 24 hours.
