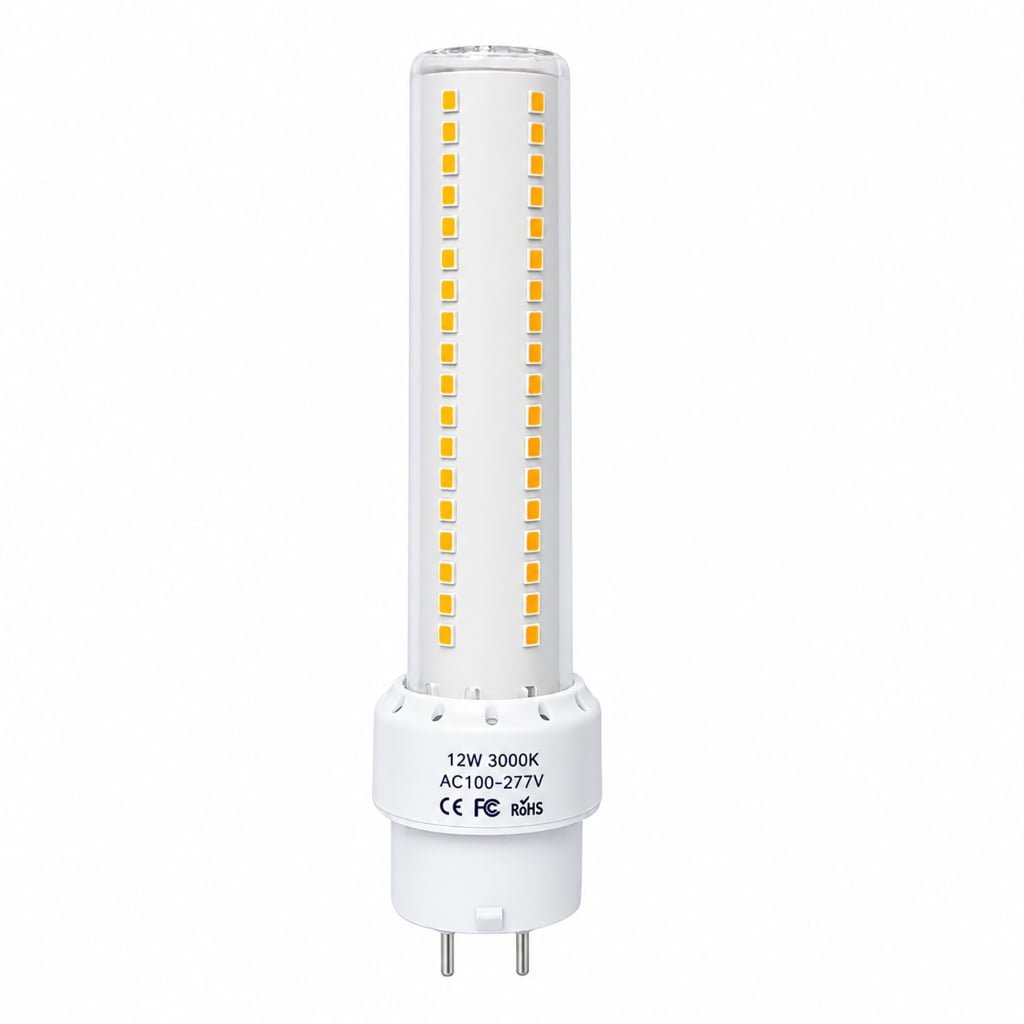

PG12-1 12W LED bulb on white background

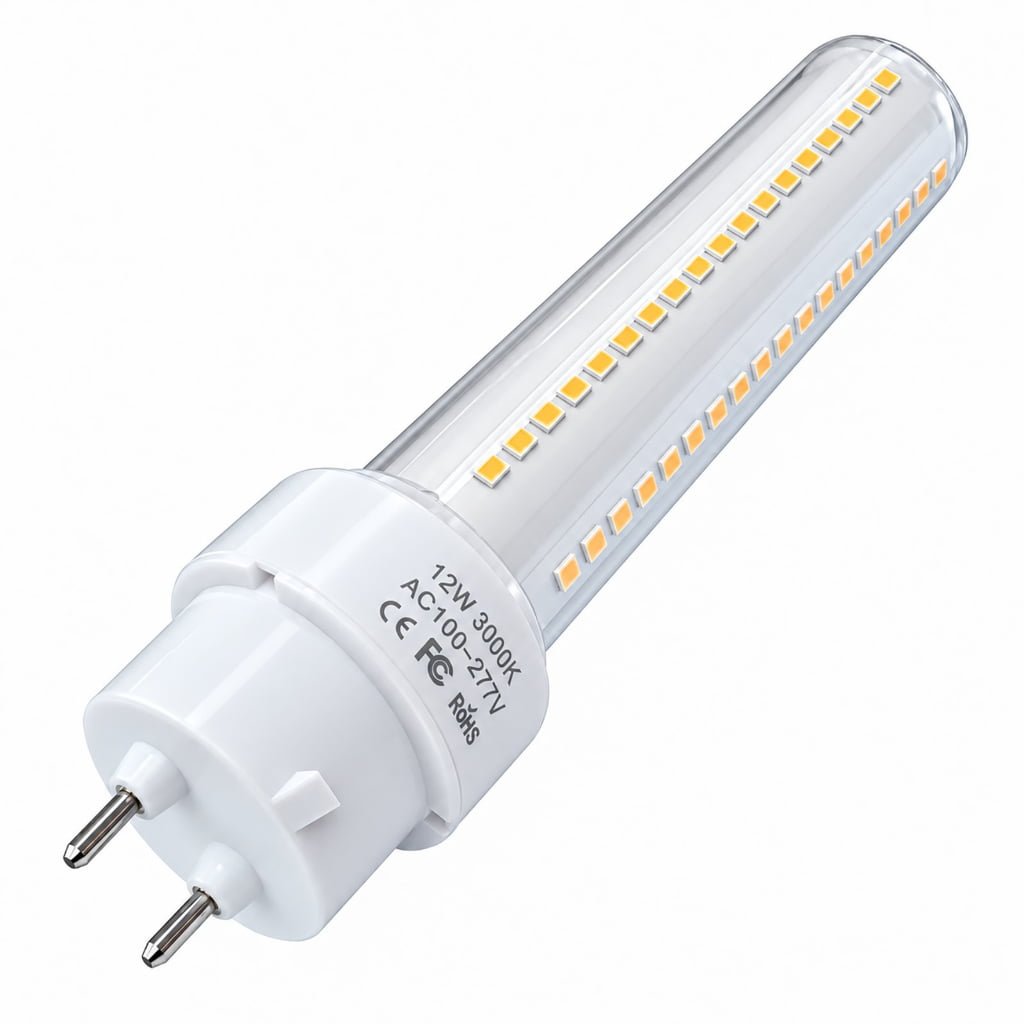

PG12-1 12W LED bulb base and connector detail

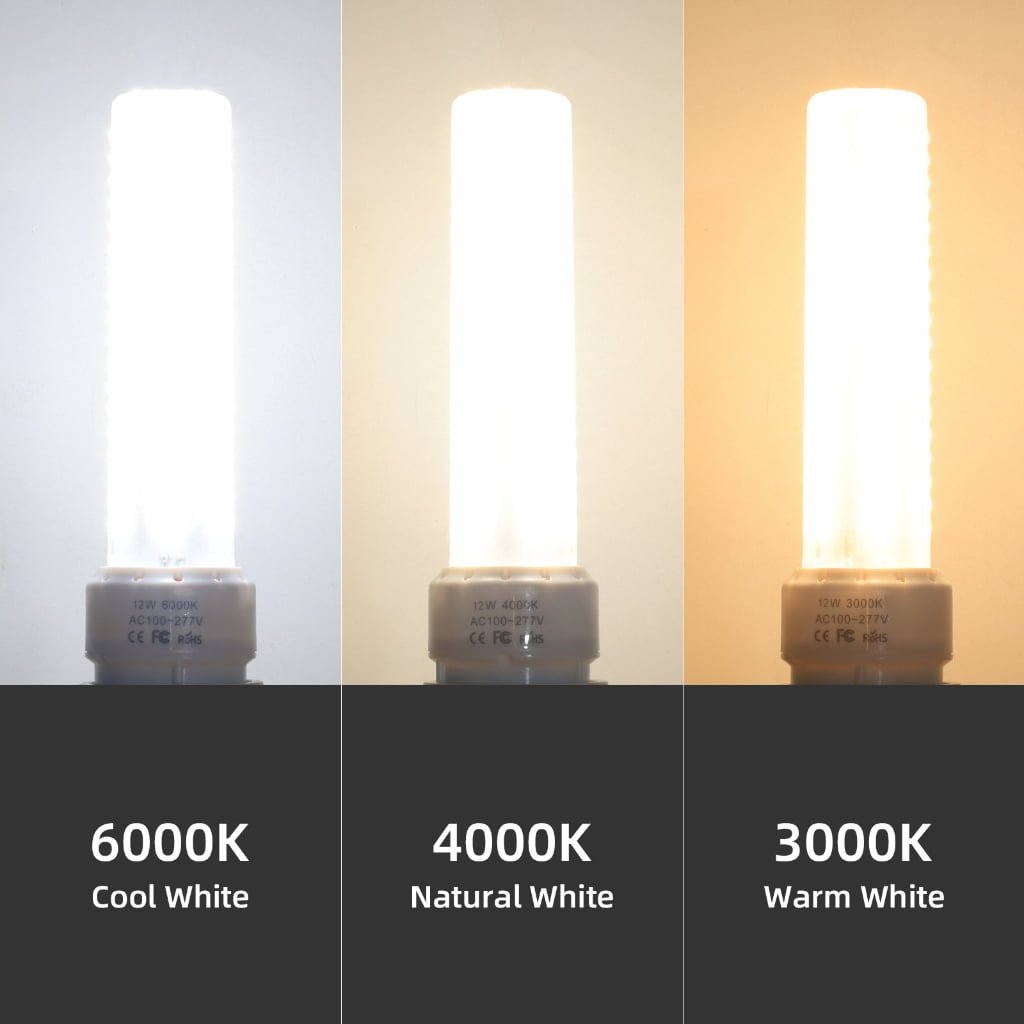

PG12-1 12W LED bulbs shown in 3000K 4000K and 6000K color temperatures

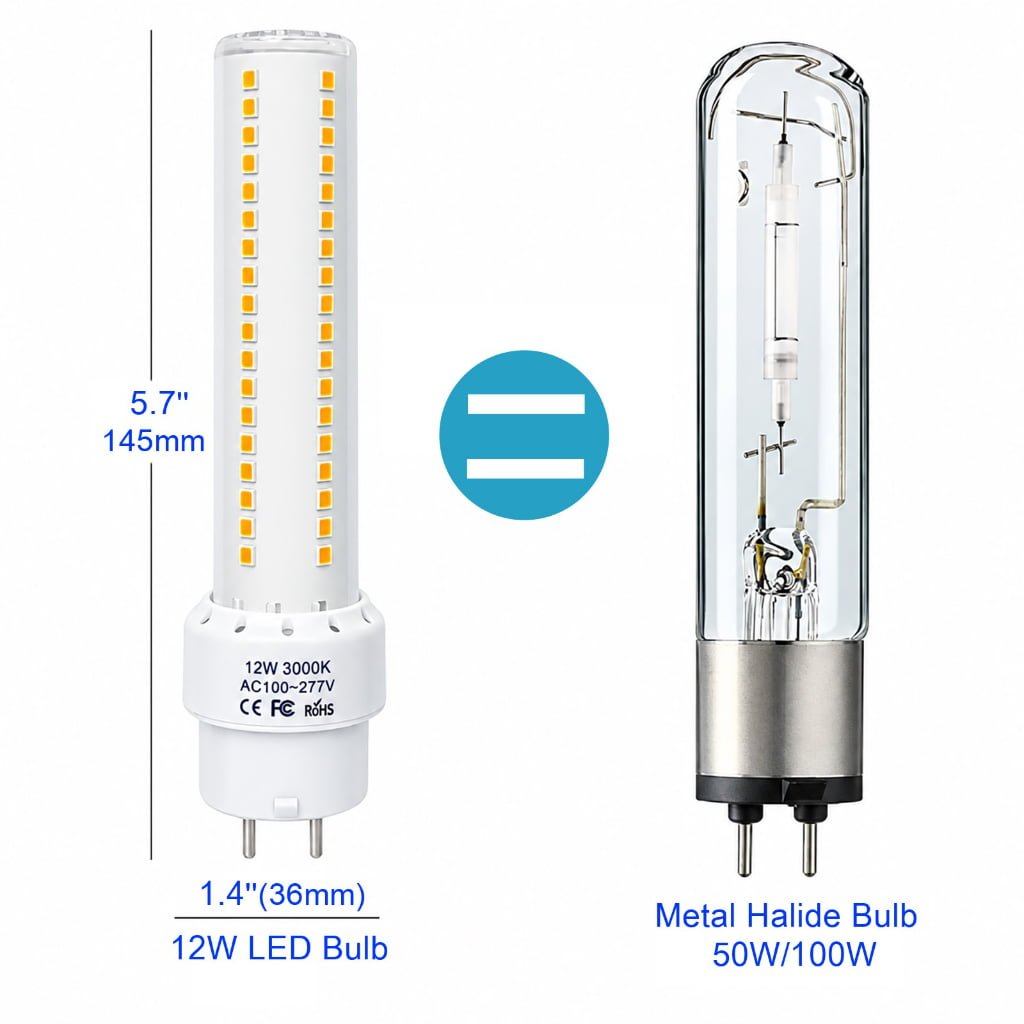

PG12-1 12W LED bulb dimensions and replacement for 50W 100W metal halide lamps
PG12-1 12W LED bulb on white background
PG12-1 12W LED bulb base and connector detail
PG12-1 12W LED bulbs shown in 3000K 4000K and 6000K color temperatures
PG12-1 12W LED bulb dimensions and replacement for 50W 100W metal halide lamps
Sample MOQ
1-5 Pieces
Lead Time
1-3 Days Ex-Stock
OEM / Label
≥ 500 Pcs
LED Replacement Lamps Base: PG12-1

PG12-1 12W LED Bulb Replacement for 50W Metal Halide Lamps

Direct-from-manufacturer replacement solutions engineered for stable retrofit compatibility, low return rate, and zero-defect mass production consistency.

Engineering Highlights

  • 360° Beam Angle
  • High Lumen Output
Materials & Finish High-transparency PC cover with internal aluminum alloy heat sink, offering good light transmission, efficient heat dissipation, and long-term durability.
Application Spaces
Hotel Room Living Room
Request Sample / B2B Quote View Full Specs Matrix
Technical Data Matrix

Model Variant Specifications

All configurations are manufactured under ISO quality protocols and tested for thermal & optical performance.

Showing all SKU options for: PG12-1 12W LED Bulb Replacement for 50W Metal Halide Lamps
Model No. Base / Pin CFL Repl. LED Power Voltage Flux / Efficacy CCT / CRI Ballast Mode Dimming Dimensions Environment Inquire
PG12-1-12W PGJ12-1 Replaces 50W/100W Metal Halide 12W 100-277V 1440 lm 120 lm/W 3000K/4000K/6000K CRI ≥ 85 Ballast Compatible Non-Dim Φ36*145mm Open Fixture, Enclosed Fixture, Dry Location, Damp Location Quote
Dual Mode (Type A+B) and Ballast Bypass (Type B) wiring configurations available per project demand.
Tolerance: CCT ±150K | Flux ±7% | Power ±5%
  • 【12W Energy-Saving Metal Halide Replacement】Delivers bright, efficient illumination at only 8W, designed as an energy-saving replacement for traditional 50W and 100W PG12-1 metal halide lamps.
  • 【Compact PG12-1Base Design】 Features a PG12-1 bi-pin base for compatible fixtures, making it suitable for retrofit lighting applications where compact lamp size and reliable socket compatibility are required.
  • 【Wide Voltage AC100-277V】Supports AC100-277V input for stable operation across a wide range of residential and commercial lighting environments.
  • 【360° Uniform Illumination】High-efficiency LED chips provide broad, even light distribution with stable output, reduced flicker, and comfortable illumination.
  • 【High Color Rendering & Versatile Applications】Designed to provide natural and vivid color appearance, suitable for garden lighting, landscape fixtures, decorative lighting, commercial spaces, and other indoor or outdoor compatible applications.
i

Ballast & Wiring Safety Guide

When installing Type B (Ballast Bypass) lamps, electronic and magnetic ballasts must be bypassed by a qualified electrician to avoid component damage. Type A plug-and-play variants require ballast compatibility verification against our verified ballast matrix before volume installation.

Factory Standard Compliance
Base Certification CE / RoHS / FCC
Power Factor PF ≥ 0.90
Color Rendering CRI Ra ≥ 80
Lifespan Rating L70 ≥ 50,000 Hrs
Factory Burn-in 100% Aging Pass
B2B Commercial Desk

Request Samples or Volume Pricing

Submit your project specifications or sample request. Our factory engineering team will verify pin configuration, ballast compatibility, and provide an official quotation within 24 hours.

✓ Fast Sample Dispatch (Ex-Stock 1-3 Days)
✓ Tiered Wholesale Pricing Structure
✓ Direct Factory Technical Support
Target Product: PG12-1 12W LED Bulb Replacement for 50W Metal Halide Lamps
🔒 Strict Confidentiality & Factory Direct Price Response Time: < 24h
