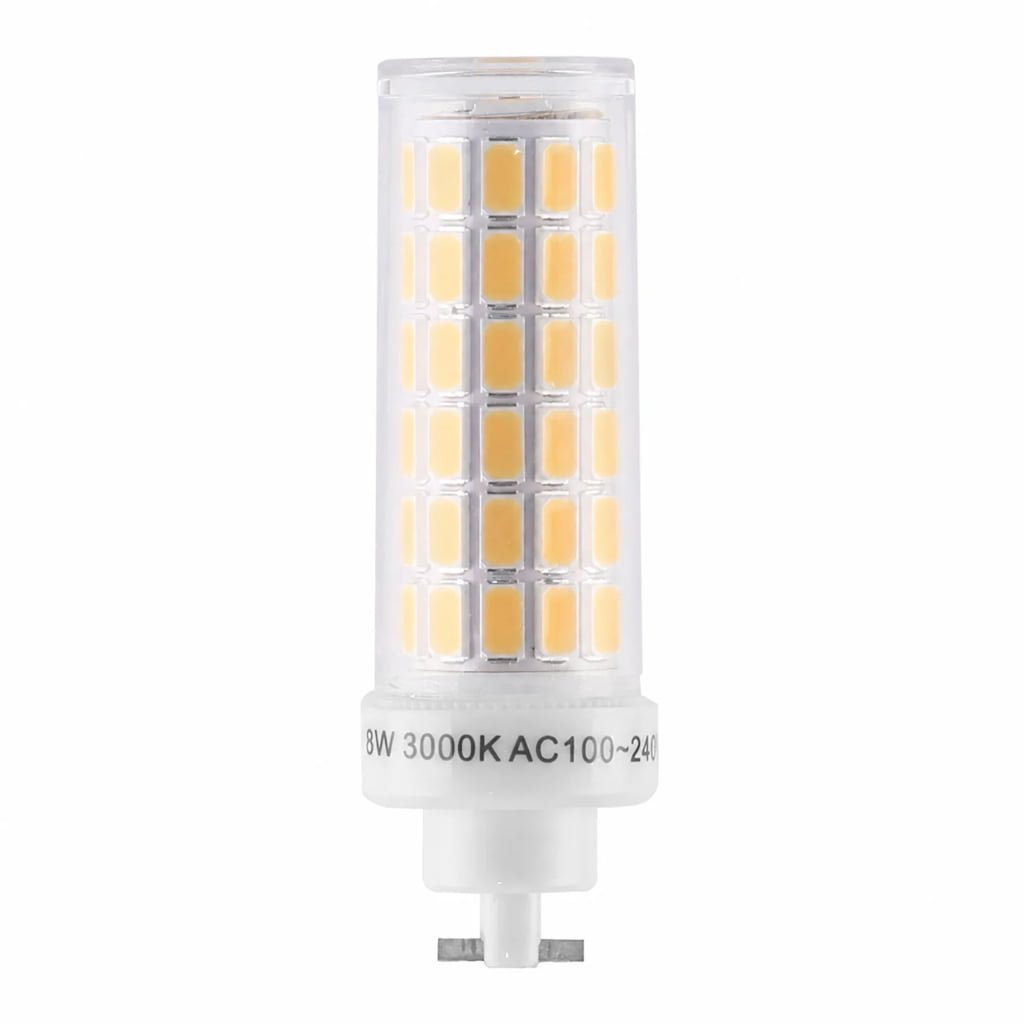

PGJ5 8W LED bulb on white background

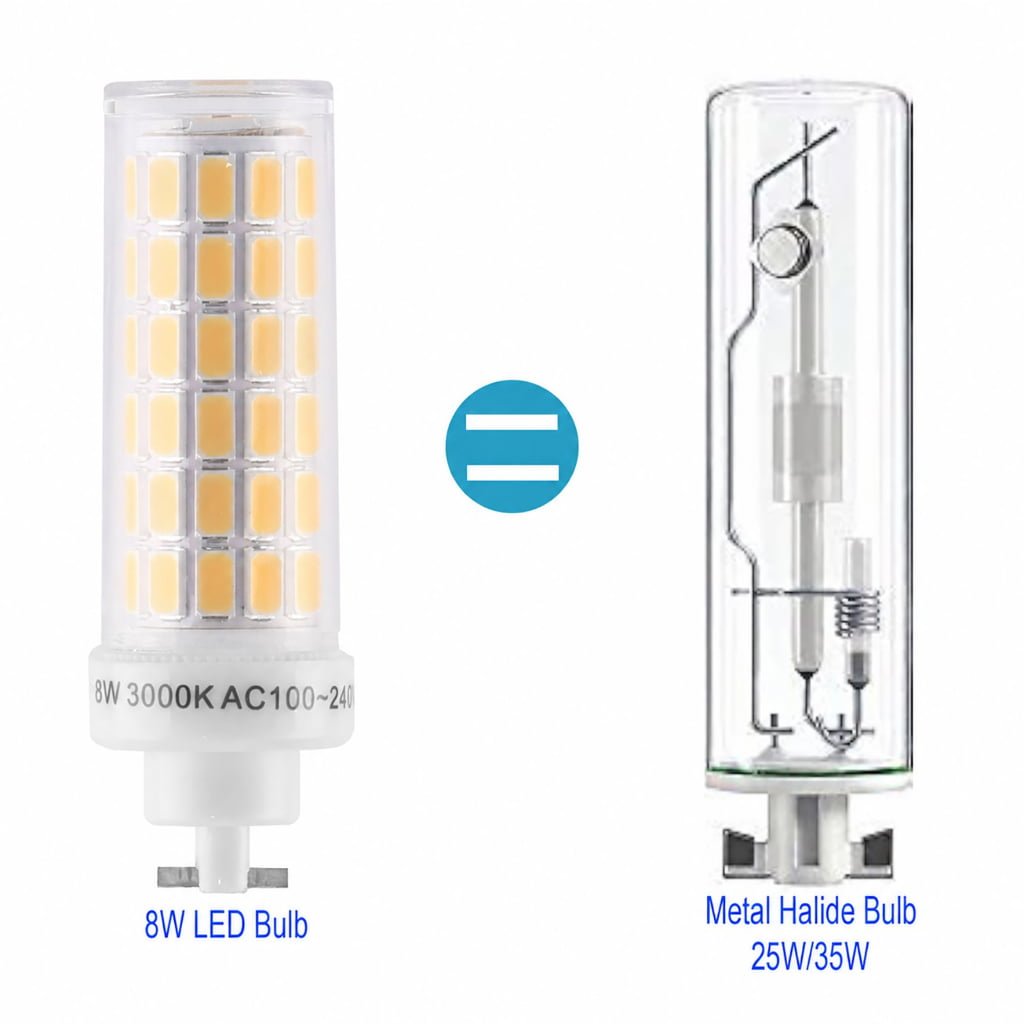

PGJ5 8W LED bulb replacement for 25W and 35W metal halide bulbs

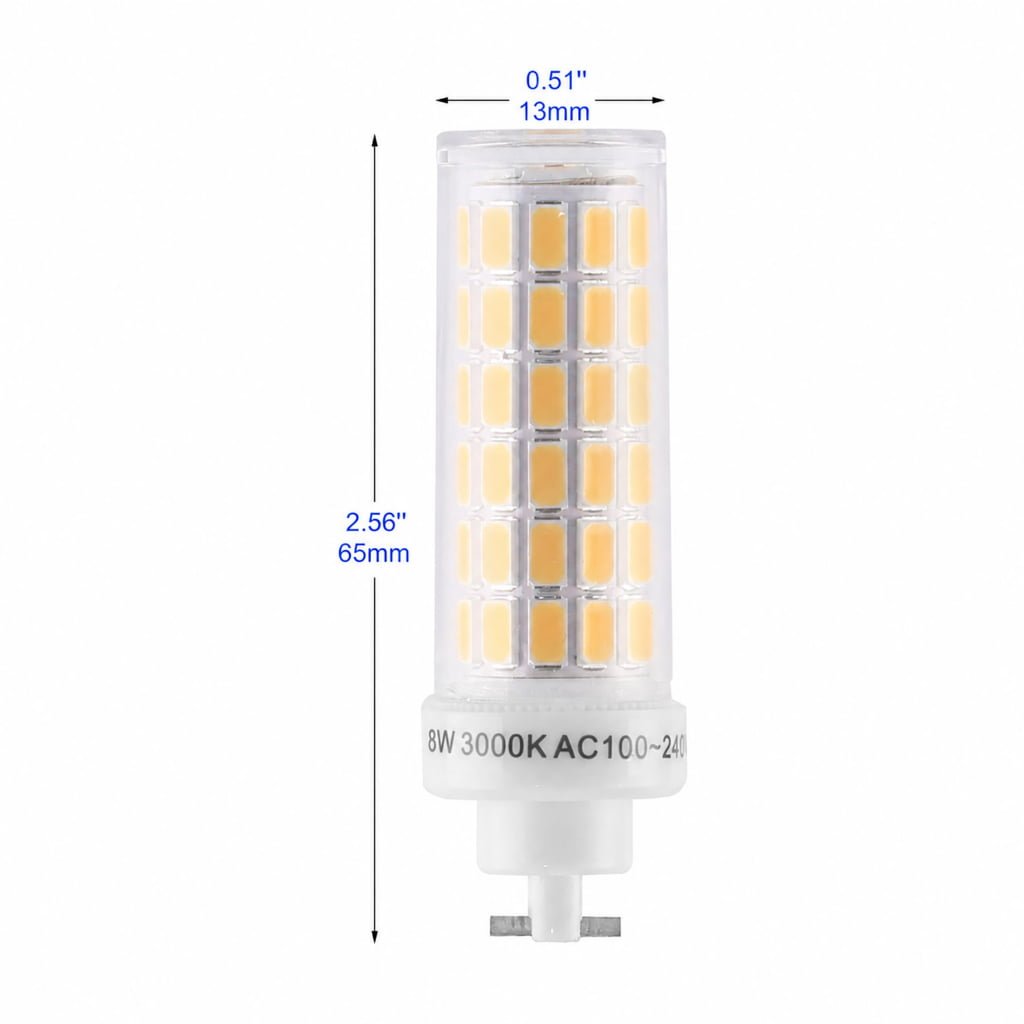

PGJ5 8W LED bulb dimensions and size diagram

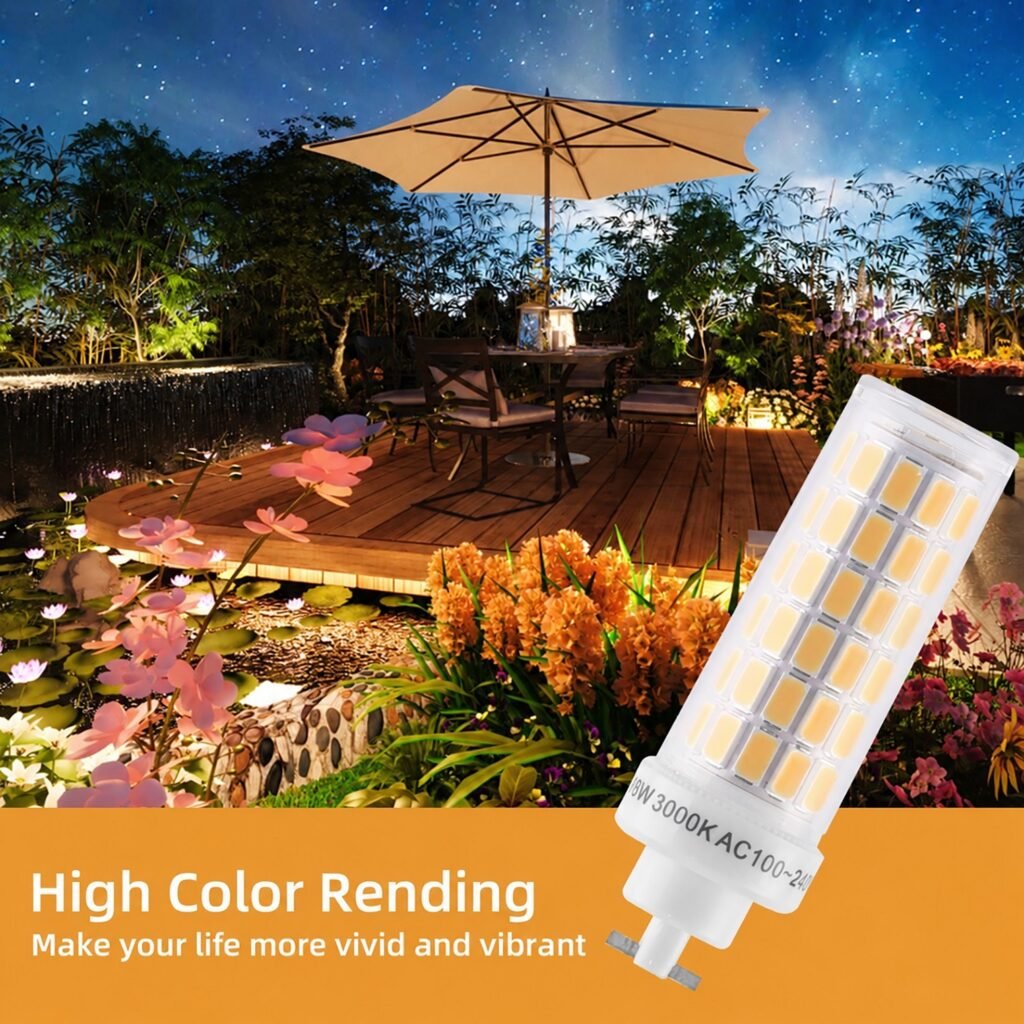

PGJ5 8W LED bulb used in outdoor garden lighting
PGJ5 8W LED bulb on white background
PGJ5 8W LED bulb replacement for 25W and 35W metal halide bulbs
PGJ5 8W LED bulb dimensions and size diagram
PGJ5 8W LED bulb used in outdoor garden lighting
Sample MOQ
1-5 Pieces
Lead Time
1-3 Days Ex-Stock
OEM / Label
≥ 500 Pcs
LED Replacement Lamps Base: PGJ5

PGJ5 8W LED Bulb Replacement for 25W/35W Metal Halide Lamps

Direct-from-manufacturer replacement solutions engineered for stable retrofit compatibility, low return rate, and zero-defect mass production consistency.

Engineering Highlights

  • 360° Beam Angle
  • High Lumen Output
  • Compact Design
Materials & Finish Ceramic heat-dissipation body with high-transparency PC cover, providing efficient thermal management, electrical insulation, good light transmission, and durable performance.
Application Spaces
Bedroom Home Office Hotel Room Living Room
Request Sample / B2B Quote View Full Specs Matrix
Technical Data Matrix

Model Variant Specifications

All configurations are manufactured under ISO quality protocols and tested for thermal & optical performance.

Showing all SKU options for: PGJ5 8W LED Bulb Replacement for 25W/35W Metal Halide Lamps
Model No. Base / Pin CFL Repl. LED Power Voltage Flux / Efficacy CCT / CRI Ballast Mode Dimming Dimensions Environment Inquire
PGJ5-8W PGJ5 Replaces 25W/35W Metal Halide 8W 100-240VAC 960 lm 120 lm/W 3000K/4000K/6000K CRI ≥ 85 Ballast Compatible Non-Dim 65mm Open Fixture, Enclosed Fixture, Dry Location, Damp Location Quote
Dual Mode (Type A+B) and Ballast Bypass (Type B) wiring configurations available per project demand.
Tolerance: CCT ±150K | Flux ±7% | Power ±5%
  • 【8W Energy-Saving Metal Halide Replacement】 Delivers bright, efficient illumination at only 8W, designed as an energy-saving replacement for traditional 25W and 35W PGJ5 metal halide lamps.
  • 【Compact PGJ5 Base Design】 Features a PGJ5 bi-pin base for compatible fixtures, making it suitable for retrofit lighting applications where compact lamp size and reliable socket compatibility are required.
  • 【Wide Voltage AC100-240V】 Supports AC100-240V input for stable operation across a wide range of residential and commercial lighting environments.
  • 【360° Uniform Illumination】 High-efficiency LED chips provide broad, even light distribution with stable output, reduced flicker, and comfortable illumination.
  • 【High Color Rendering & Versatile Applications】 Designed to provide natural and vivid color appearance, suitable for garden lighting, landscape fixtures, decorative lighting, commercial spaces, and other indoor or outdoor compatible applications.
i

Ballast & Wiring Safety Guide

When installing Type B (Ballast Bypass) lamps, electronic and magnetic ballasts must be bypassed by a qualified electrician to avoid component damage. Type A plug-and-play variants require ballast compatibility verification against our verified ballast matrix before volume installation.

Factory Standard Compliance
Base Certification CE / RoHS / FCC
Power Factor PF ≥ 0.90
Color Rendering CRI Ra ≥ 80
Lifespan Rating L70 ≥ 50,000 Hrs
Factory Burn-in 100% Aging Pass
